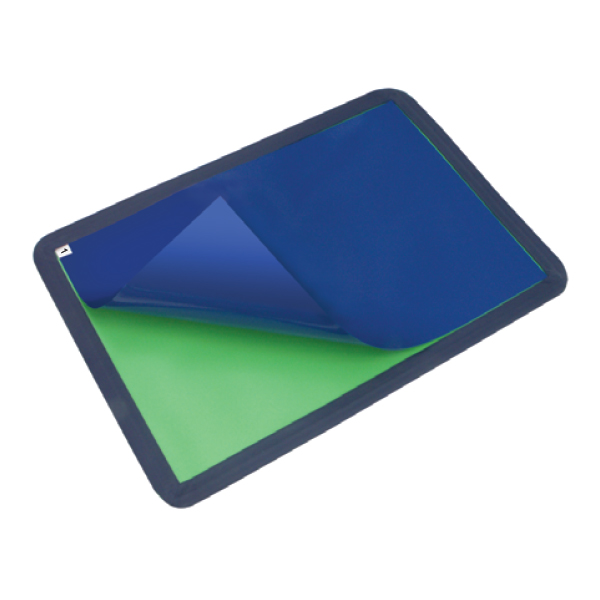

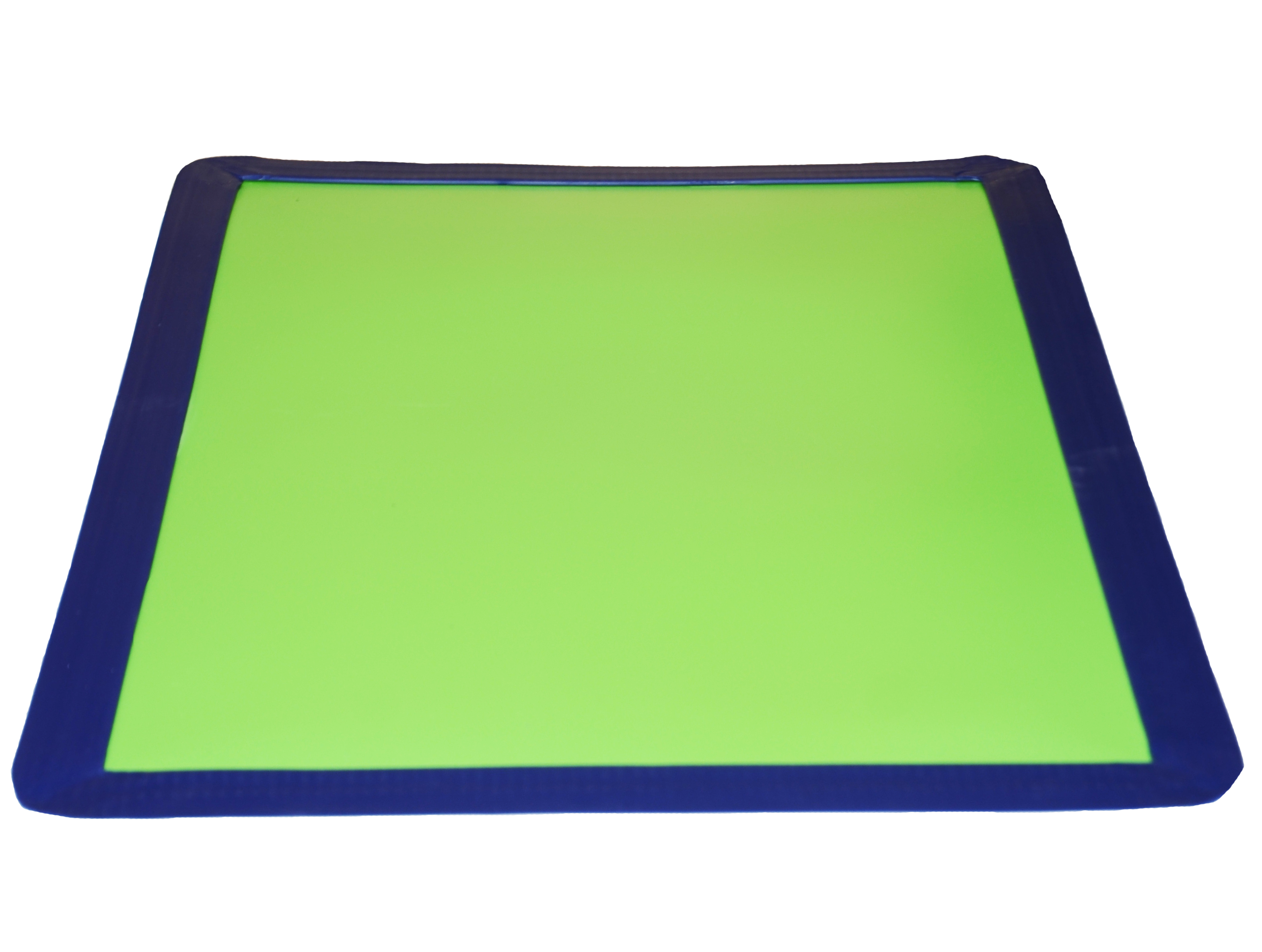

Frame For Sticky Mat

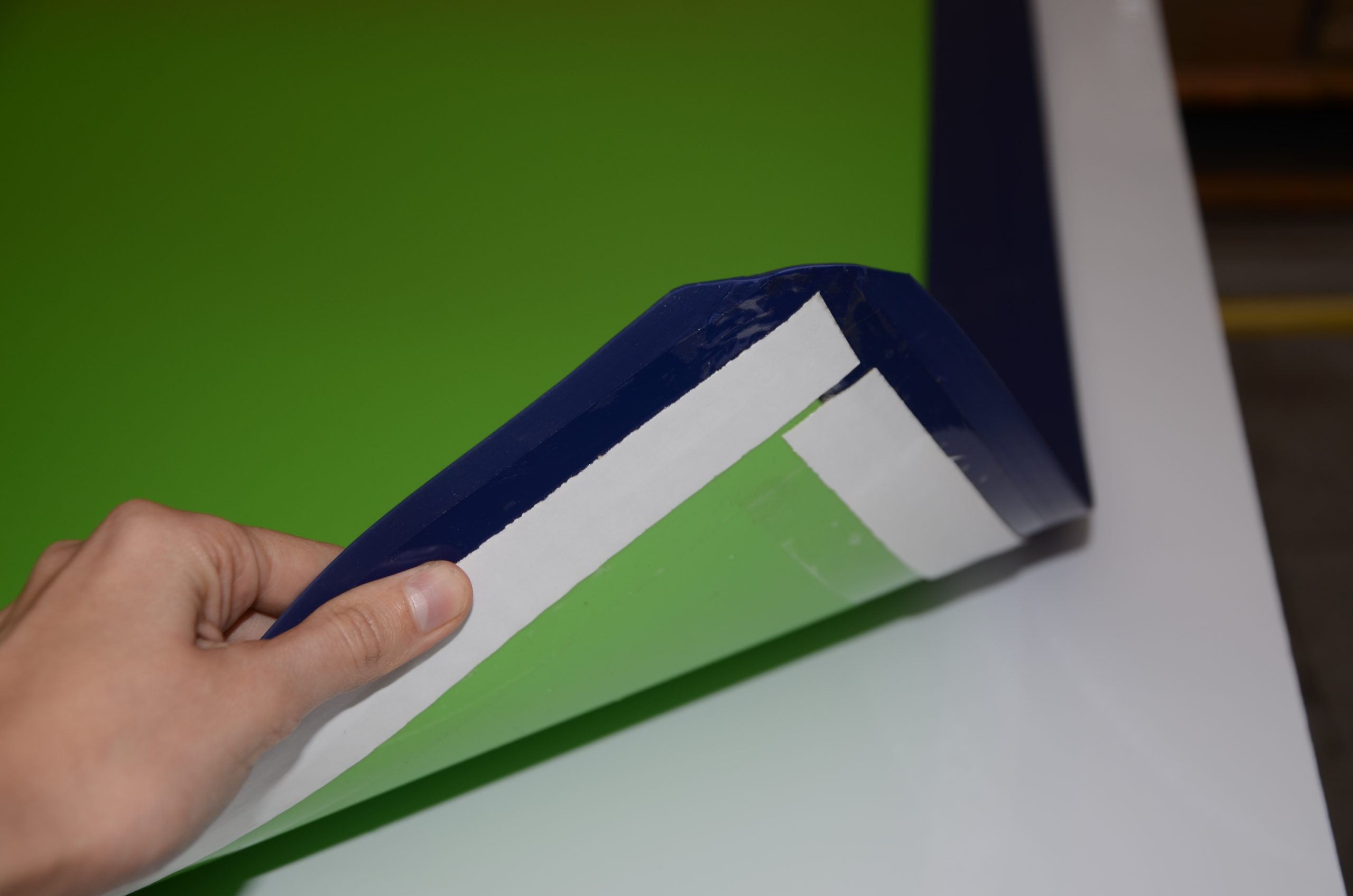

Are used to provide a uniform and effective base for adhering sticky mats securely, yet permitting easy removal of the last sheet, eliminating the surface problems created by floors. Also used to enhance appearance, frames can be simply laid on the floor permanently lagged to the floor, or held in place by either a non-skid base or double-faced tape.
Provides uniform base for adhering sticky mats, Works extremely well with all sticky mat bottom adhesives, No maintenance required, Enhances appearance of mats.

Categories: ,
Part Number ES-M04C-001 ES-M04C-002 ES-M04C-005
Size 600 × 900mm 600 × 1200mm 18″ × 36″
Thickness (mm) ID : 1T
ED : 5T
Width (mm) ID : 605 ID : 605 ID : 462
ED : 705 ED : 705 ED : 562
Length (mm) ID : 905 ID : 1205 ID : 919
ED : 1005 ED : 1305 ED : 1019
Hole Size (Φ) 0.5
Interval of each hole in
cross section (mm)		 50
Carton Size (mm) 720 × 1020 × 12(H) 720 × 1320 × 12(H) 600 × 1020 × 12(H)
Quantity / Carton 1EA
Weight / Carton 2.2 kg 3.2 kg 1.8 kg
Part Number ES-M04C-006 ES-M04C-004 ES-M04C-003
Size 18″ × 45″ 26″ × 45″ 24″ × 36″
Thickness (mm) ID : 1T
ED : 5T
Width (mm) ID : 462 ID : 665 ID : 615
ED : 562 ED : 765 ED : 715
Length (mm) ID : 1148 ED : 1148 ED : 919
ED : 1248 ED : 1248 ED : 1019
Hole Size (Φ) 0.5
Interval of each hole in
cross section (mm)		 50
Carton Size (mm) 600 × 1270 × 12(H) 790 × 1270 × 12(H) 720 × 1020 × 12(H)
Quantity / Carton 1EA
Weight / Carton 2.7 kg 3.4 kg 2.5 kg
