Bench Top Ion Blower

Category	Descriptions
Part Number	ES-M02-E-029	ES-M02-E-030	ES-M02-E-008

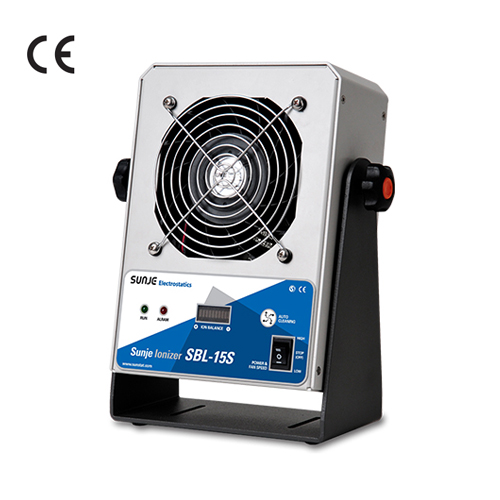

Model	SBL-12A	SBL-12B	SBL-15S
Input Power	DC 24V, Adaptor (AC110~220V, 50/60Hz)		AC110~240V, 50/60Hz, Adaptor DC24V
Power Consumptions	7.7W	7.3W	35W
Ion-Generation Method	Steady-State DC
Air Blow Volume	4.25㎥/min		4.84㎥/min
Noise Level (dB)	62dB (1000m)		62dB
Ion Balance, 600mm, Max Air Flow	Within ±5V (600mm, maximum air flow)		Within ± 5V
Ozone (O3) Concentration	≤0.005ppm
Operation Circumstance	0℃ ~ +50℃ (32℉ ~ 122℉), 35% ~ 85% RH
Weight	1.42kg		2.8kg
Material	EGI		Aluminum
Electrode Material	Tungsten (standard) / Titanium (option)
Mounting Method	Desk Top
Function	Tip Cleaning, Auto Tip Cleaning		Tip Cleaning, 2 Steps Fan Speed, Ion Balance Display
Alarm Function	Ion Unbalance Alarm, Fan Alarm		Ion Unbalance Alarm
Interface	Remote On/Off, Run State, RS485		Remote On/Off, Run State, RS485, Alarm
Option	RMS (Real Monitoring System)		RMS (Real Monitoring System)
Warranty	1 year

————————————————————————————————————————————————————————————-

SBL-20W, SBL-30W

• Ion Balance within  ± 2V (at 60cm distance, max. air flow)
• EMI (Electro-Magnetic Interference) and EMS(Electro-Magnetic Susceptibility)
• Automatic tip cleaning function
• Various Interfaces with automated factories (PLC, Computer)
• Ion unbalance alarm
• RMS(Real Monitoring System)
• Remote control
• Ion bar graph
• Wide range and long distance

Category	Descriptions
Part Number	ES-M02-E-003	ES-M02-E-023
Model	SBL-20W	SBL-30W
Input Power	AC100~240V, 50/60Hz	AC100~220V, 50/60Hz
Power Consumption	37W	50W
Ion-Generation Method	Steady-State DC	Steady-State DC
Air Blow Volume	9.68m³/min	12.44m³/min
Noise Level (dB)	63dB	68dB (1,000mm, fan speed max)
Ion Balance	Within ±2V	Within ±5V
Ozone (O₃) Concentration	≤0.005 ppm	≤0.005 ppm
Operation Circumstance	0℃~ 50℃ (32˚F ~ 122˚F), 35%~85% RH	0℃~ 50℃ (32˚F ~ 122˚F), 35%~85% RH
Weight	4.5kg	6.2kg
Material	Aluminum	Aluminum
Electrode Material	Tungsten / Titanium	Tungsten / Titanium
Mounting Method	Desk Top	Desk Top
Function	2 Step Fan Speed, Tip Cleaning	Remote Control, 4Step Fan Speed, Auto Tip Cleaning, Buzzer On/Off, Ion Balance Display
Alarm Function	Ion Unbalance Alarm	Ion Unbalance Alarm, Fan Alarm
Interface	Remote On/Off, Run State, Tip Cleaning, Alarm (Ion Unbalance), RS485	Run State, Remote On/Off, RS485, Alarm (Ion Unbalance)
Option	RMS (Real Monitoring System)
Warranty	1 year
